Old Node Adapter Upgrade to V06.xx

Now V06.xx PIC (with bootloader) is available. (include future online update)
Latest version of V06.xx is same as latest version of V07.xx except power circuit.

Price Information for New V06.xx PIC

V02.05 and V02.06 board user: Please send me your board with PIC (main PIC), I will upgarde your board with free of charge. If you want to upgrade, please contact me. Do not send your bord without my reply.
If you could not send me your board, I offer the new PIC (V06.xx) for 1000yen (Japanese Yen include shipping charge). If you want new PIC, please contact me with evidence that your are right owner.

V01.00 board user: If you are right owner of my board, I will give you the New Firmware with PIC for 1000Yen (Japanese Yen include shipping charge). If you want to get the NEW PIC (New firmware), please contact me. Do not send your money without my reply. Also, you must send me the evidence that your are right owner.

Other user: New PIC is 6000Yen (Japanese Yen include shipping charge). But I do not garantee your borad work or does not. (on your risk)
.

V01.00 Board
1. Change C17 from 220u to 4.7u (Requirement of USB 2.0)
2. Add 47K between pin 1 of PIC18F2550 and Vdd.(pulling up register)
3. Add 1M between pin 13 and 14 of CMX589A.
5. Cut the pattern between pin 2 of PIC18F2550 and SW6.
6. Cur the pattern between pin 7 of PIC18F2550 and R15.
7. Add jumper between R15(pattern cut side) and pin 3 of PIC18F2550.
8. Add 47K betwwen pin 14 of CMX589A and pin 2 of PIC18F2550.
9. Add 4.7u between pin 2 of PIC18F2550 and GND.
10. Add jumper between pin 7 of PIC18F2550 and pin 19 of CMX589A.
Option
11. Add the tact switch between pin 27 of PIC18F2550 and GND
12. Add 47K between pin 27 of PIC18F2550 and Vdd.
13. Add the tact switch between pin 28 of PIC18F2550 and GND
14. Add 47K between pin 28 of PIC18F2550 and Vdd.
15. Add the tact switch between pin 1 of PIC18F2550 and GND

V02.05 Board
1. Change C17 from 220u to 4.7u (Requirement of USB 2.0)

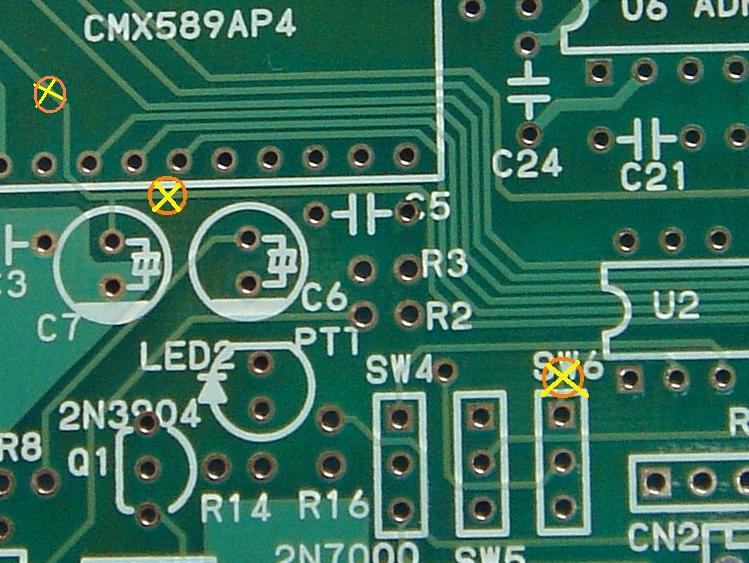

2. Cut three pattern on the front of PCB.
3. Cut one pattern on the rear of PCB.
4. Add two jumpers. (Modified photo)
5.. Add 47K between + of C7 and pin 23 of CMX589A.(photo)
6. Add 47K between pin 1 of PIC18F2550 and Vdd.(pulling up register)
Option
7. Add the tact switch between pin 27 of PIC18F2550 and GND
8. Add 47K between pin 27 of PIC18F2550 and Vdd.
9. Add the tact switch between pin 28 of PIC18F2550 and GND
10. Add 47K between pin 28 of PIC18F2550 and Vdd.
11. Add the tact switch between pin 1 of PIC18F2550 and GND

V02.06 Board
1. Change C17 from 220u to 4.7u (Requirement of USB 2.0)
2. Cut the pattern between + of C7 and pin 23 of CMX589A.(photo)
3. Add 47K between + of C7 and pin 23 of CMX589A.(photo)
4. Add 47K between pin 1 of PIC18F2550 and Vdd.(pulling up register) (photo)
Options
5. Add the tact switch between pin 27 of PIC18F2550 and GND
6. Add 47K between pin 27 of PIC18F2550 and Vdd.
7. Add the tact switch between pin 28 of PIC18F2550 and GND
8. Add 47K between pin 28 of PIC18F2550 and Vdd.
9. Add the tact switch between pin 1 of PIC18F2550 and GND
